    *** GPUNCHER SUPERNESTER - AUTOPROGRAMMING SYSTEM

  • Self programming software version(For pricing and demo, please call)
  • G code Autogenerated. From DXF file(s) to G code with little intervention
  • Punch press and any jet cutting machine capabilities(Lasers, plasmas,water jets)
  • Package includes G code transfer software(DNC communications software)
  • Autonester included
  • Clamp auto reposition for punching inside clamp dead zones
  • Permanent full support included
  • 5  days of  courtesy free software training , 1hr 30 min. per day included
  • Free installation assistance included
  • Moveable license, install and run anywhere
  • Full PDF file support, full PDF report
  • Full graphics color, flat colors  and wire frame views capability

Call for pricing details and trial version USA# 209-740-4682

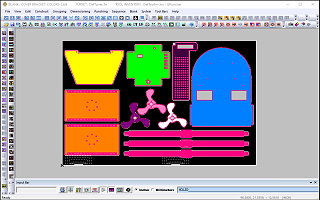

    ** GPUNCHER SUPERASSEMBLY - SUPER PROGRAMMING SYSTEM

  • Punch Laser, plasma $3050.00USD
  • Combo machines $3300.00 USD
  • Handling of unlimited sheets with different thickness, material types and/or different machines, save all in a single file all. !Ready to handle whole Assemblies!
  • Autonesting compatible and optional to include in purchase
  • Clamp auto reposition for punching inside clamp dead zones
  • Autorepositioning, autotooling, autosequencing
  • 3 months courtesy free support included
  • 5 days of courtesy free software training , 1hr 30 min. per day included
  • Free installation assistance included
  • Moveable license, install and run anywhere
  • PDF file support
  • Full graphics color, flat colors  and wire frame views capability

Request full trial version



    * GPUNCHER PRO - PROFESSIONAL PROGRAMMING SYSTEM

  • Punch, laser or plasma $2575.00 USD
  • Combo machines $2775.00 USD
  • Autorepositioning, autotooling, autosequencing
  • 3 months courtesy free support included
  • 5 days of courtesy free software training , 1hr 30 min. per day included
  • Free installation assistance included
  • Moveable license, install and run anywhere
  • Upgrade to higher version available any time
  • Flat colors  and wire frame views capability

Request full trial version

GSENDER - DNC G CODE TRANSFER SYSTEM

Software system to transfer the g code from your desktop to your machine's control for part cutting

  • $375.00 USD with technical support

GREVERSER - G CODE TO CAD CONVERTER

Reverse engineer your old g code back to CAD geometry for reprogramming, printing, measure when no Cad was available.

  • Amada, Strippit and Nisshinbo machines are supported.
  • $475.00 USD

                      Video and PDF library

































< Supports Windows  XP, 2003, Vista, Wndows 7, Windows  8 and Windows 10, Windows 11 >

    *** PayPal account holder since 2005 ***

    Solution Graphics

    *** Payments thru STRIPE, direct deposit or wire transfer accepted, please call.



    Call USA# 209-740-4682

    Visit us in facebook at:  https://www.facebook.com/metalpuncher

















GPuncher programming system - Supported machines:

*** All Amada punch & laser machines are supported ***

    Pega 244, 344, 345, 357, 358S, 367 ; Vipros 255, 345, 357, 358, 367, 368, 558, 568, 2510k ; Coma 555, 557, 567, 588 ,     Aries 245, 222,     All Octos, Vela II 355 ,  EMLK3610NT, Arcade 210, 212, Apelios, LCE 655, etc...



*** Others:

  • NIsshinbo HTP1000, HTP650, MAP1000, MAP500, BPM750, SPM750, HIQ1250

  • Murata (Punch, lasers and/or combo are supported) C1000, C2000, C2500, C3000, M2044, M2048, MAGNUM 5000, V3036, V3046, V5058,  M1250, 2044  2044EZ, M2125

  • Wiedemann W4560, W-3050, S2540

  • FinnPower TP-2015, TP-2620

  • PullMax  Pullmatic 156

  • Rainer

  • Mazak Lasers Lsr-Mazak 510 MKII, Lsr-Mazak Optiplex 3015(Control previw II and preview III)

  • Cincinnati Lasers CL-6, CL-7

  • Trumpf  Trumatic TC260R, TC260T, TC 200R, TC2000R, TC160R, TC500R, TC200R, TC2020R, Laser TC L 3030, 4030,6030 both controls(SINUMERIK 840D and BOSCH). All TC models punch and lasers supported.

  • All Strippits Punch, plasma and Laser  FC1000, FC750, 1250S, CAP1000, LVD P-1212, LVD P-1225, 1500 H/30, FC1000 II, FC1000 III, FC1000 XP-20, FC1000 SXP,  1000 H/30, 1000 M/30, 1000R, 630R, Delta 1000, Delta 1250, Delta 1500, PA-1530,  L VD Omega 1500, LVD Alpha 1012

    DeltaShape2, 1250 H20,  FC630R

  • Bystronics lasers: Bystronics Byspeed 3015

  • Pullmatic Pullmatic 156

  • Haco OMATIC 130 DTR, PUNCH MASTER 310

  • Euromac ZX1000/30, CX 1000/30, ZX 1250-30, MTX 1250-30, MTX12 1250/30-2500

  • Tailift   HPS1250, HPS1250X, HPS2500, VISE1250, CP1500, CP2500, HP1250, HP1500, HP2500

  • Whitney 3700 ATC

  • Diacro 36-20

  • YAWEI HPE series

  • RETROFITTED CONTROLS Fagor, PC800, MACH3, NC4, KARA cnc postprocessor available, Micon 486 programming

  • *** All Plasma and water Jet machines are supported, ESSI code supported

  • ESAB

  • FLOW

    *New postprocessors:

        If your machine is not listed here chances are we have it, please get in contact and we will make a driver and postprocessor for your machine if we don't have it.























Courtesy reccomended Technicians:

Name:      George Myer

Phone #:   631-987-6316

Machines:  Amada & others

Country:     United States





Name:      Keith Coffee

Phone #:   716 8304630

Machines:  Strippit & others

Country:     United States

Web page:www.cncmachineryllc.com

*** Great Strippit machines and parts store, please visit, we recommend their low prices  and service***





Name:      Michael A. Smith

Phone #:   516-457-3808

Machines:  Amada, Strippit & others

Country:     United States





Gadsden Engineering

Name: Dave Conley

Phone#: 815-200-9733   Web page: https://www.gadsdenengineering.com/

Machines: Amada

Country: United States

*Any Amada punch press and/or laser, service and machine sale
